Starter relay for Honda SH 300, Hornet 600, Piaggio Beverly 350-400, Liberty 125, Yamaha X-Max 250

The BCR starter relay is the replacement part for a motorcycle or scooter that no longer starts or only clicks when you press the start button. It fits Honda SH 300 and Hornet 600, Piaggio Beverly 350 and Liberty 125, Yamaha X-Max 250 and many other Aprilia, Gilera, Honda, Suzuki and Yamaha models listed in the applications table.

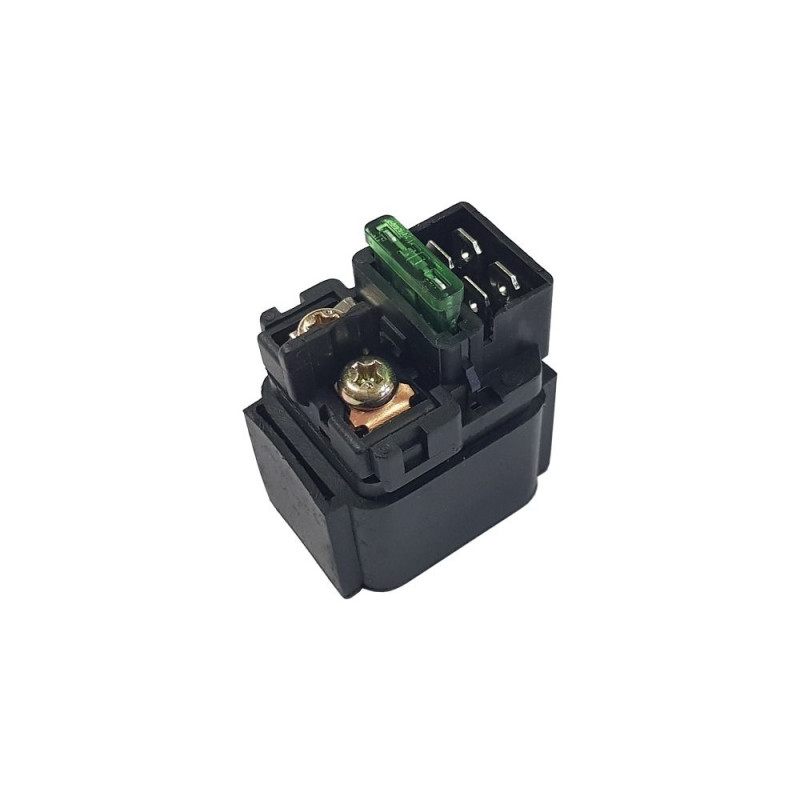

It is a 12 V relay with a built-in fuse, two screw terminals for the power cables and a 4-pin connector for the control signal: the same layout as the original, ready to replace the faulty one.

What a starter relay does

The starter relay, also called a solenoid, connects the battery to the starter motor when you press the button. The button only sends a small current through the 4-pin connector, while the relay closes the power circuit that feeds the starter with the high current needed to turn the engine. Over time the internal contacts wear and the relay may stop closing the circuit.

Features

• 12 V starter relay (solenoid)
• Built-in blade fuse
• Two screw terminals for the power cables
• 4-pin connector for the control signal
• BCR brand
• Fits many Aprilia, Gilera, Honda, Piaggio, Suzuki and Yamaha models

Main applications

• Honda SH 300 i, from 2007 to 2022
• Honda CB 600 F Hornet, from 1998 to 2012
• Piaggio Beverly 350 ST IE ABS, from 2016 to 2019
• Piaggio Liberty 125 iGet, from 2017 to 2019
• Yamaha YP250R X-Max, from 2005 to 2009
• Honda SH 125-150, Honda Forza 250-300, Honda NC 700-750, Honda X-ADV 750 and many more

The full list of brands, models and years is in the applications table at the bottom of the page.

Original references

For comparison: the original Honda reference for SH and Hornet is 35850MT4000, the Piaggio one for the Beverly family is 582690. Always check your model in the applications table.

When to replace the starter relay

• You press the button and only hear a click, the starter does not turn
• The starter works only intermittently or after several attempts
• The battery is charged but the scooter will not start
• The relay is blackened, melted or its terminals are corroded

Before you buy

Check that your vehicle's model and year are in the table, compare the 4-pin connector and terminal position with the relay fitted, and also check the fuse and battery cables: a blown fuse or a corroded contact can cause the same symptoms.

Frequently asked questions

What does the starter relay do?

It connects the battery to the starter motor when you press the button.

How do I know if it is faulty?

If you hear a click but the starter does not turn and the battery is charged, the relay is one of the parts to check.

Does it have a fuse?

Yes, it has a built-in blade fuse.

Will it fit my scooter?

Check the model and years in the applications table.

What voltage is it?

It is a 12 V relay.
