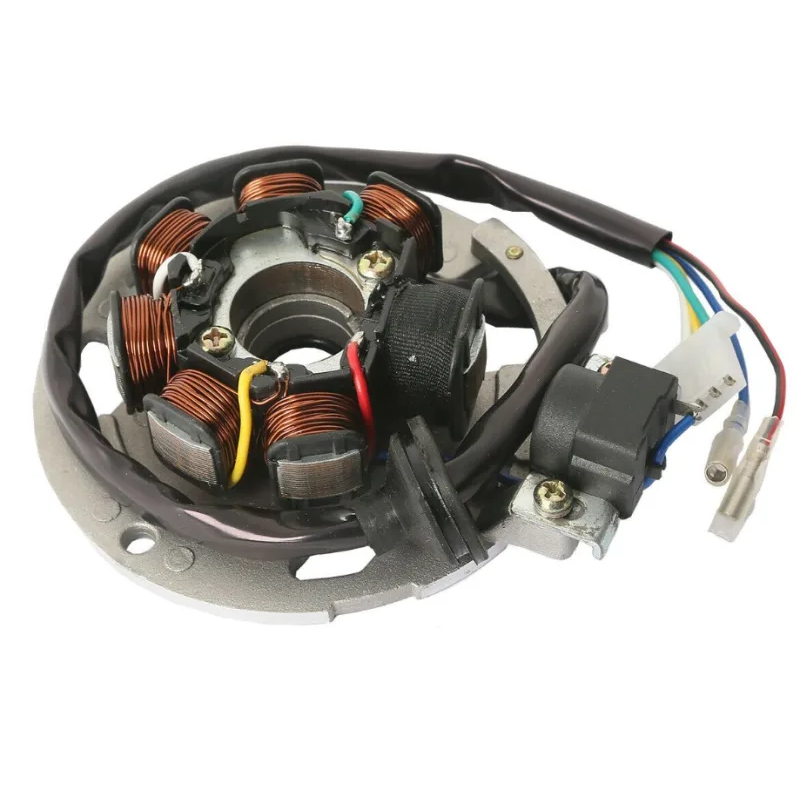

The 7-pole stator (code 404011530) is an essential part of the ignition and charging system on scooters with a Minarelli 50 2T engine. This version is supplied without the aluminium support plate.

When to replace it

If the scooter does not charge the battery, has irregular ignition or cuts out while riding, the stator may have burnt windings and needs replacing.

Features

• 7 poles
• High reliability
• Plug-and-play fitting on the original plate
• Supplied without the aluminium plate

Compatibility

Applications: Aprilia Scarabeo 50 (93-05), SR 50 (94-99), Rally, Gulliver, Area 51, Sonic; Yamaha Aerox 50 (97-02), Neos 50 (97-01), Why, Jog; MBK Nitro, Ovetto, and other scooters with a Minarelli 50 2T engine.

Fitting tips

As the plate is not included, it is fitted on your original plate: remove it from the flywheel, transfer the stator and check the clearance with the flywheel before closing up.
