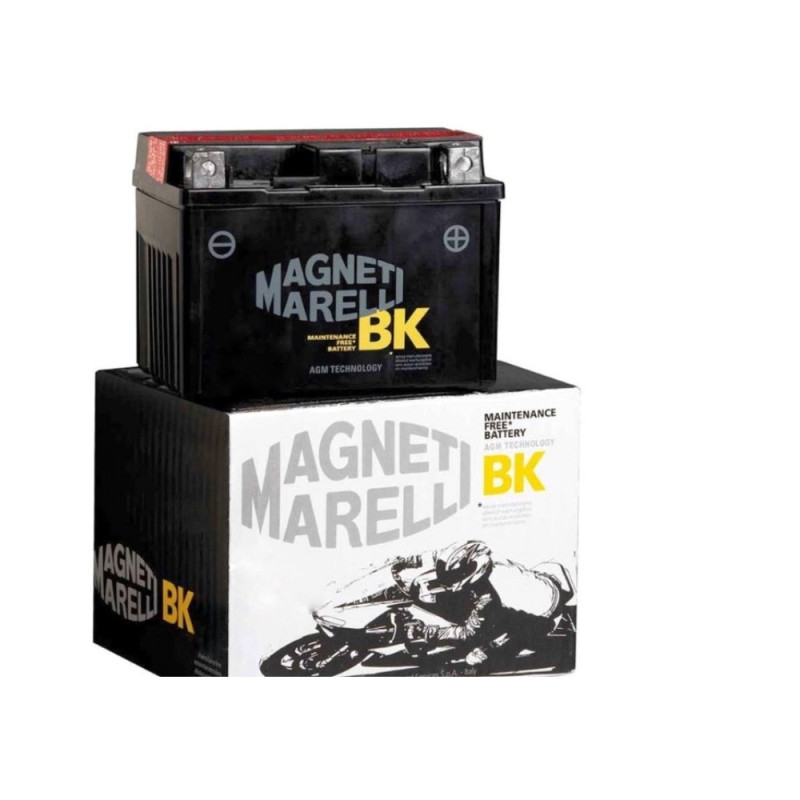

Magneti Marelli battery MOTZ14S-BS YTZ14S, 12 V 11.2 Ah CCA 230 A 150x87x110 mm

The Magneti Marelli MOTZ14S-BS battery replaces the YTZ14S-BS for motorcycles, maxi scooters and adventure bikes: 12 V, 11.2 Ah, 230 A cold cranking current (CCA) and dimensions of 150x87x110 mm. It fits Honda X-ADV 750, NC 750, Integra, Africa Twin, Transalp, Yamaha FZ1 and XJR 1300, KTM 1290 Super Adventure and 990 Adventure, Triumph Tiger 900 and 1200, Kawasaki GTR and ZZR 1400, Suzuki V-Strom and many other models listed in the table.

It is a sealed, maintenance-free AGM battery (Magneti Marelli BK series): it needs no topping up, can be mounted in different positions and comes with the acid pack to fill before use.

Features

• Magneti Marelli MOTZ14S-BS, Yuasa YTZ14S-BS equivalent
• 12 V, 11.2 Ah capacity
• 230 A cranking current (CCA)
• Dimensions 150x87x110 mm
• Sealed, maintenance-free AGM technology
• Supplied with acid pack

Which motorcycles and scooters it fits

Some of the compatible models; the full list is in the applications table at the bottom of the page:

• Honda: X-ADV 750, NC 750 X and S, Integra 750, Africa Twin CRF1000L, NT 1100, Transalp 700, Deauville, Shadow 750
• Yamaha: FZ1 1000 and Fazer, XJR 1300, V-Max 1700, XV 950
• KTM: 1290 Super Adventure, 990 and 1190 Adventure, 990 Supermoto, 1290 Super Duke
• Triumph: Tiger 900 and 1200, Speed Triple 1050
• Kawasaki: GTR 1400, ZZR 1400 and 1200, ZRX 1200
• Suzuki: V-Strom 1000 and 1050, Intruder VZ 800, Hayabusa 1300
• Benelli, CFMOTO, QJ Motor, Kymco AK 550 and Xciting 400, SYM Maxsym 400, MV Agusta F4 750, Peugeot Metropolis 400

Always compare the code (YTZ14S) and dimensions with your vehicle's original battery: the applications follow retailer catalogues.

When to replace the battery

Signs that a battery needs replacing are slow or uncertain starting, the dashboard going dark when you turn the key, voltage dropping after a stop and lights dimming with the engine off. With a new battery the engine starts straight away and the voltage regulator works better.

Fitting and tips

Pour in the acid supplied following the instructions, wait for the stated time and fit the battery with the terminals in the same position as the old one. Connect the positive terminal first and then the negative, check the mounting and, if the vehicle stays idle for long periods, use a battery maintainer.

Frequently asked questions

Which battery does it replace?

It is equivalent to the Yuasa YTZ14S-BS.

What capacity and cranking current?

12 V, 11.2 Ah and 230 A cold cranking current (CCA).

Is it maintenance-free?

Yes, it is a sealed AGM battery and needs no topping up.

Is the acid included?

Yes, the acid pack is supplied to fill before use.

What are the dimensions?

150x87x110 mm.
