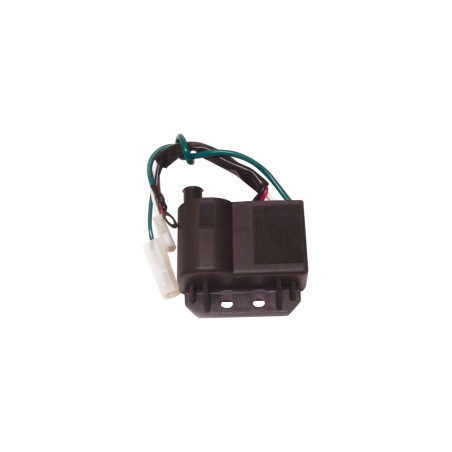

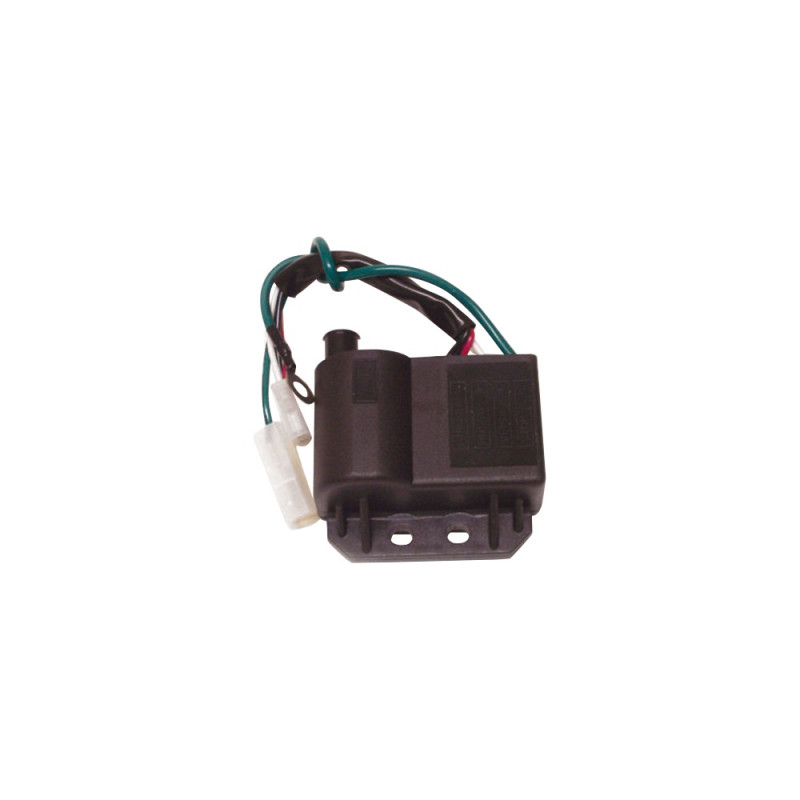

Electronic ignition CDI unit for Beta Ark, Malaguti F10, F12, Centro

The BCR electronic ignition unit is the replacement part for Beta Ark and Malaguti F10, F12, F15, Centro and Ciak 50 cc scooters that have lost their spark, start with difficulty or stall for no reason. It is an original-type part, ready to replace the faulty unit.

The CDI unit controls ignition: it receives the signal from the flywheel and generates the high voltage that feeds the spark plug at the right moment. When it fails the engine may not start, misfire or only run when cold.

What the ignition unit does

The CDI (capacitor discharge ignition) unit stores energy and discharges it into the coil at the exact moment to ignite the mixture. It works together with the stator and flywheel: if one of them is faulty the symptoms are similar, so check them before replacing the unit.

Features

• Electronic CDI ignition unit
• Original-type replacement for 50 cc scooters
• Wires with connectors and terminals already fitted
• Two-hole mounting
• BCR brand

Applications

• Beta Ark 50
• Malaguti Centro 50, 1993-1994
• Malaguti Centro SL 50, 1994-2000
• Malaguti Ciak 50, 1999-2000
• Malaguti Ciak Mono Euro 2 50, 2003
• Malaguti F10 Jet Line 50, 1992-1998
• Malaguti F12 Phantom LC 50, 1994-1998
• Malaguti F15 Firefox 50, 1996-1998
• Malaguti F15 Firefox LC 50, 2001

Check your scooter's model and year in the list: the data comes from suppliers and retailer catalogues.

When to replace the unit

• No spark at the spark plug
• The engine starts with difficulty or not at all
• The scooter stalls for no reason or misfires
• Ignition works only intermittently, for example when the engine is cold

Before you buy

Compare the connectors and the number of wires with the fitted unit and check that your scooter's model and year are in the list. Also check the spark plug, cap, coil and stator: they can cause the same symptoms.

Frequently asked questions

What does the ignition unit do?

It generates the high voltage for the spark plug at the right moment.

How do I know if it is faulty?

If there is no spark and the plug, cap and stator are fine, the unit is one of the parts to check.

Which scooters does it fit?

Beta Ark 50 and Malaguti F10, F12, F15, Centro and Ciak 50, for the years listed.

Which brand is it?

BCR.
