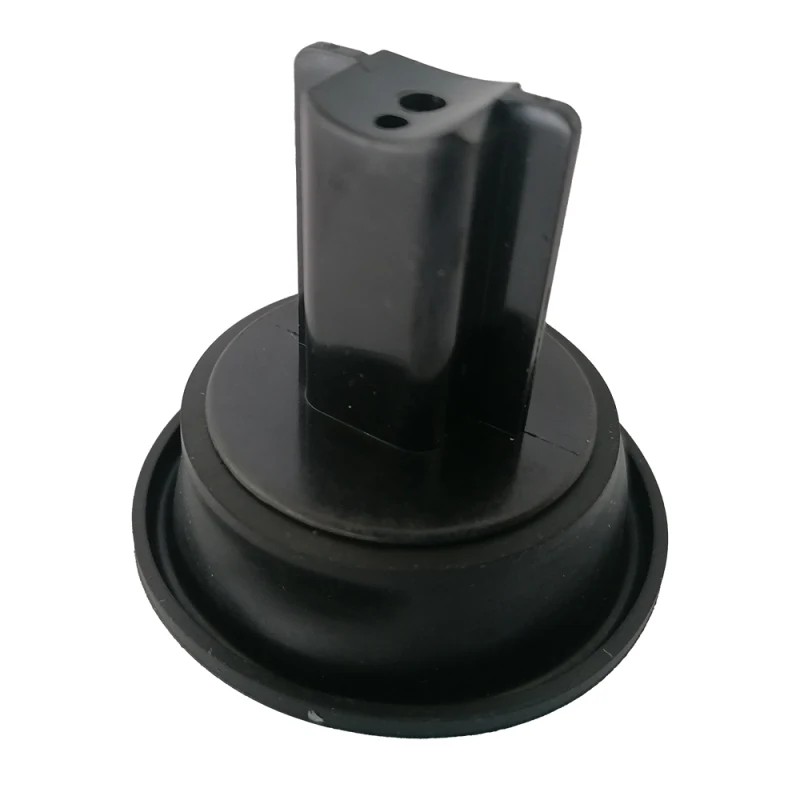

Carburettor diaphragm for Aprilia Scarabeo 50 4T, Piaggio Liberty 50 4T, Zip 50 4T and Primavera 50 4T, equal to the original
€17.40
€26.84
Save 35.17%Tax included
same day shipping! (Working)
Carburettor diaphragm for Aprilia Scarabeo 50 4T, Piaggio Liberty 50 4T, Zip 50 4T and Primavera 50 4T: a replacement equal to the original, to fit when the existing one is cut or worn.
The carburettor diaphragm is the rubber part that controls the opening of the carburettor: this part is made for Aprilia Scarabeo 50 4T, Piaggio Liberty 50 4T, Zip 50 4T and Primavera 50 4T and matches the shape and function of the original.
When to replace it
Over time the diaphragm cuts or tears and the carburettor no longer works properly: the scooter struggles to start, runs badly or will not start at all. Replacing it is simple and quick, exactly as with the original diaphragm.
Features
- Like the original, same shape and function
- Simple, quick replacement
- Restores proper carburation
- The needle is not included: use the standard one
Compatibility
Aprilia Scarabeo 50 4T, Piaggio Liberty 50 4T, Zip 50 4T and Primavera 50 4T. Check the diaphragm’s shape and diameters by comparing it with yours, and see the applications table below for the main models.
Applications Table
| Brand | CC | Model | Years |
|---|---|---|---|
| APRILIA | 50 | SCARABEO 4T RESTYLING EU3 | 2006-2009 |
| APRILIA | 50 | SCARABEO 4T | 2002-2006 |
| APRILIA | 50 | SPORT CITY ONE 4T | 2008-2010 |
| DERBI | 50 | ATLANTIS 4T EU2 | 2007 |
| DERBI | 50 | ATLANTIS | 2004-2006 |
| DERBI | 50 | BOULEVARD 4T EU2 25 KM/H | 2009 |
| PIAGGIO | 50 | FLY 4T & 25-30 KM/H | 2008-2011 |
| PIAGGIO | 50 | FLY 4T 2V 25-30KM-H | 2012-2017 |
| PIAGGIO | 50 | FLY 4T 2V | 2013-2015 |
| PIAGGIO | 50 | FLY 4T MOTORE CHN | 2006-2007 |
| PIAGGIO | 50 | FLY 4T | 2005-2007 |
| PIAGGIO | 50 | LIBERTY 4T DELIVERY - SINGLE | 2010-2014 |
| PIAGGIO | 50 | LIBERTY 4T DELIVERY TNT | 2009 |
| PIAGGIO | 50 | LIBERTY 4T PTT (DEU) | 2007-2012 |
| PIAGGIO | 50 | LIBERTY 4T PTT - DOUBLE - NEXI | 2009-2017 |
| PIAGGIO | 50 | LIBERTY 4T RST | 2004 |
| PIAGGIO | 50 | LIBERTY 4T SPORT | 2006-2008 |
| PIAGGIO | 50 | LIBERTY 4T | 2000-2002 2005-2008 |
| PIAGGIO | 50 | LIBERTY MOC 4T & ELLE | 2009-2016 |
| PIAGGIO | 50 | VESPA ET4 | 2000-2005 |
| PIAGGIO | 50 | VESPA LX 4T | 2005-2009 |
| PIAGGIO | 50 | VESPA PRIMAVERA 4T 2V 25 KM/H | 2014-2017 |
| PIAGGIO | 50 | VESPA SPRINT 4T 2V 25 KM/H | 2014-2017 |
| PIAGGIO | 50 | ZIP 4T 25KM-H | 2006-2016 |
| PIAGGIO | 50 | ZIP 4T | 2000-2013 |
Fitting tips
Take off the carburettor cover, remove the damaged diaphragm and fit the new one without creases, reusing the standard needle. If you lack experience, have a workshop do it.
