      Bitubo WZB02 Rear Shock Asorber for Aprilia SR 125/150 99-02
      Bitubo WZB02 Rear Shock Asorber for Aprilia SR 125/150 99-02

      Bitubo WZB02 Rear Shock Asorber for Aprilia SR 125/150 99-02

      Review(0)
      €315.13
      €384.30
      Save 18%
      Tax included
      Shipping time in 6-7 days
      Available to order: ships in 6-7 business days
      Bitubo WZB02 Rear Shock Asorber for Aprilia SR 125/150 99-02
      Quantity :
      VIEW COMPATIBLE MOTORCYCLES
      Write your review
      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

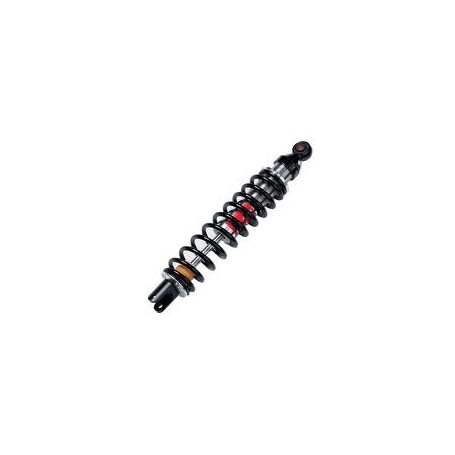

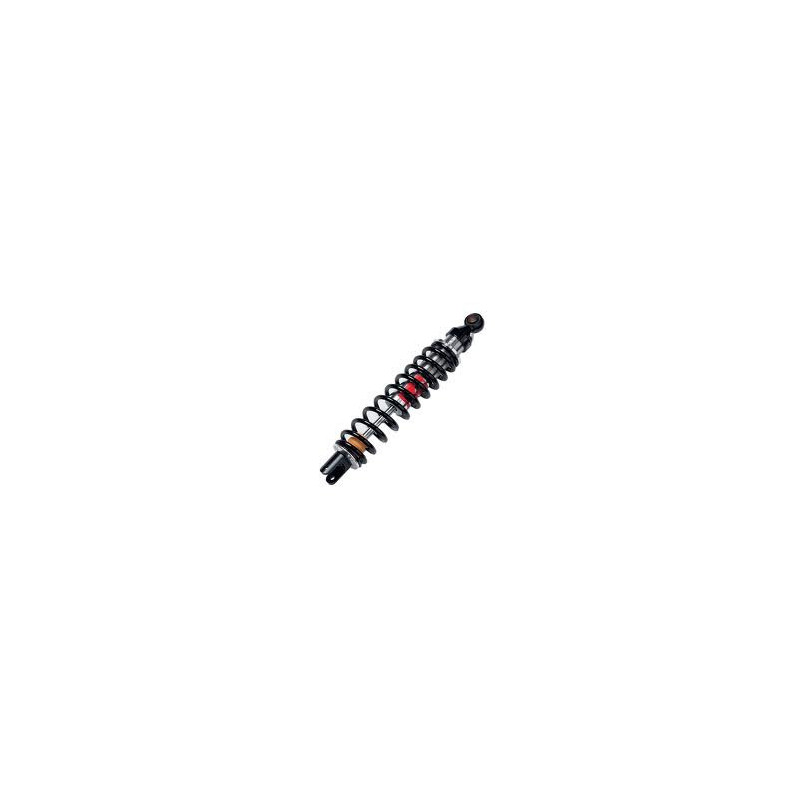

      Single chamber front monoshock absorber for scooters, compensated by presurized gas (Nitrogen), with oil/gas piston separator. Calibrated specifically for each type of scooter. Technical features: Shock absorber body in shighly resistant steel alloy, with new anti-oxidant and anti-wear treatments, head in aluminium alloy made from a single block by CNC machine. Adjustment: - spring preload, with micrometric alluminium ring. N.B: The product displayed is generic for WZB. Some characteristics (eg. Mountings) may vary for each model applications Compatible with: - Aprilia: SR 125/150_S
      Bitubo
      SC134WZB02

      Compatibility

      Aprilia
      SR 125/150_S

      Specific References

      Questions & Answers 1

      Q
      Bob Sohngen en 11/05/2026
      May i ask how long this product is? I would assume aroung 295mm? Much gratitude in advance!
      1 expand_more
      Motogm Shop 11/05/2026

      Here are the technical specifications of the product:

      Technical Specification

      Value

      Tube/body-side mounting (ANMD)

      Ø10x22

      Tube/body-side mounting type (ATD)

      O

      Body orientation (ORC)

      TOP

      Body tube diameter (TS)

      36

      Gas pressure (PG)

      6

      Free piston position (PLP)

      14

      Preload

      12

      Preloaded spring (MPREC)

      198

      Main spring length (M1L)

      210

      Secondary spring length (M2L)

      0

      Total spring rate (KTOT)

      2.1

      Compression setting (SPC)

      ---

      Rebound setting (SPE)

      18-26

      Total travel (G)

      75

      Piston rod diameter (SD)

      12

      Eye-to-eye length (L)

      289

      Piston rod-side mounting (BNMD)

      Ø10_36.5_M10

      Piston rod-side mounting type (BTD)

      F
